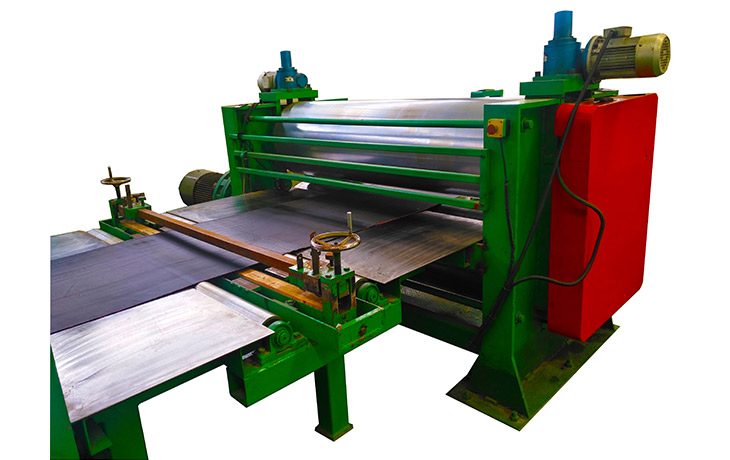

Conveyor belt forming production line
Technical parameters / name |
||||
| Technical parameters / model | DCS—1400 | DCS—1800 | DCS—2000 | DCS—2400 |
| Molded strip （mm) | 1200 | 1600 | 1800 | 2200 |
| First fit layer | 4 | 4 | 4 | 4 |
| Molded strip maximum thickness（mm) | 35 | 35 | 35 | 35 |
| Molded strip blank diameter（mm） | 3500 | 3500 | 3500 | 3500 |
| Molded strip maximum weight (tons) | 15 | 20 | 23 | 28 |
| Molding speed（m/min) | 25 | 25 | 25 | 25 |
| Tension control method |
Pneumatic brake / variable frequency vector motor |
Pneumatic brake / variable frequency vector motor |
Pneumatic brake / variable frequency vector motor |
Pneumatic brake / variable frequency vector motor |
| Correction control method | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto |
| Molding table （mm) | 1400 | 1800 | 2000 | 2400 |
| Total length of the production line（mm) | 30 | 30 | 30 | 30 |
